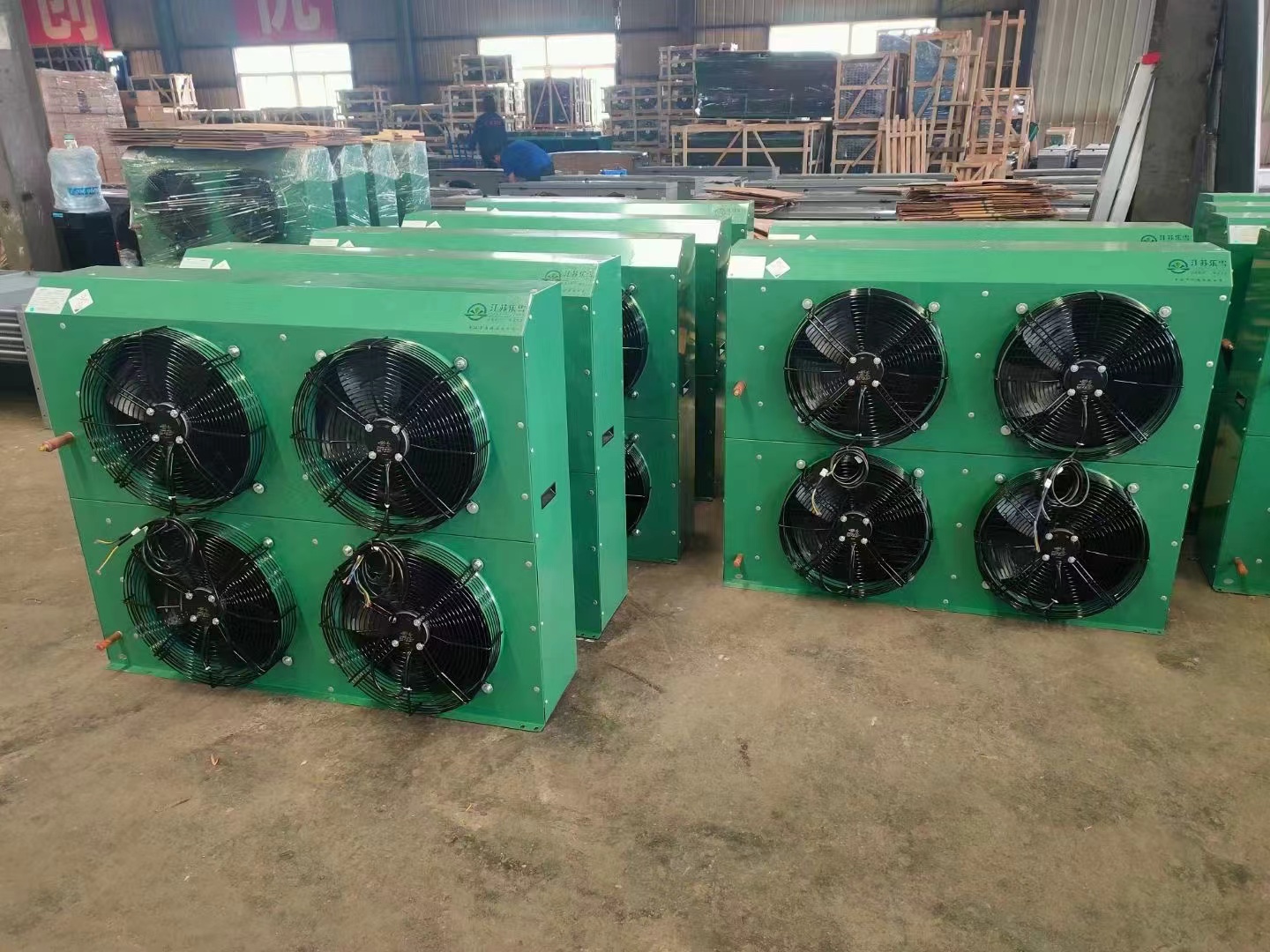

LX air-cooled condenser adopts high-quality high-efficiency finned tube assembly φ Made of 7mm internally threaded copper tube and special shaped fins, and subjected to cleaning and 30 bar pressure testing.

Shell: Galvanized sheet (according to customer requirements), with high safety standards, high corrosion resistance and shock resistance, and no pollution.

Fan:  Can choose high-quality Mare fans with short air duct and mesh covers or Micro-Optical shaded pole motor, which have high safety standards, reliable and shockproof installation methods.

Internally threaded copper tube: The grooved structure on the inner surface of the copper tube can increase the contact area - increasing heat transfer efficiency by 10-12%.

Electric Parameters:

Fin spacing:2.1mm

Surface of heat exchange: 242m²

Moter fan diameter(mm)&quantity:4*450

Air flow(m³/h):4*8600

Power: 4*500w

Voltage: 380v
