Material:
Copper tube Aluminum fin Galvanized steel casing

Heat exchanger coil specification:
Tube diameter:12.7mm
Fin spacing:9mm
Fin type:Corrugated
Surface:300m²
Tube Volume:71dm³

Fan motor:
Power:3300W EA
Voltage:380V
Fan diameter:600mm

Fan quantity: 4

Defrosting type: water defrosting

Applicable refrigerant:
R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.

LeSnow is dedicated to tailoring the best solutions for air cooler by considering your specific needs,
Our team of highly experienced engineers is dedicated to designing custom solutions for our clients, while also offering valuable suggestions.

How to choose or design a customized air cooler for your needs?

In order to provide you with the most suitable storage solution,
For a refrigerated warehouse, we require information regarding the size (length, width, and height) and desired cold room temperature.

For production-type refrigerated warehouses, we require information on whether the air cooler is intended for cooling or quick-freezing rooms. Additionally, we need to know the temperature of the incoming and outgoing goods, the quantity of goods entering and leaving, and the cooling or freezing time required.

With this information, we can assist you in selecting the appropriate standard model or customizing a solution to fit your specific needs.

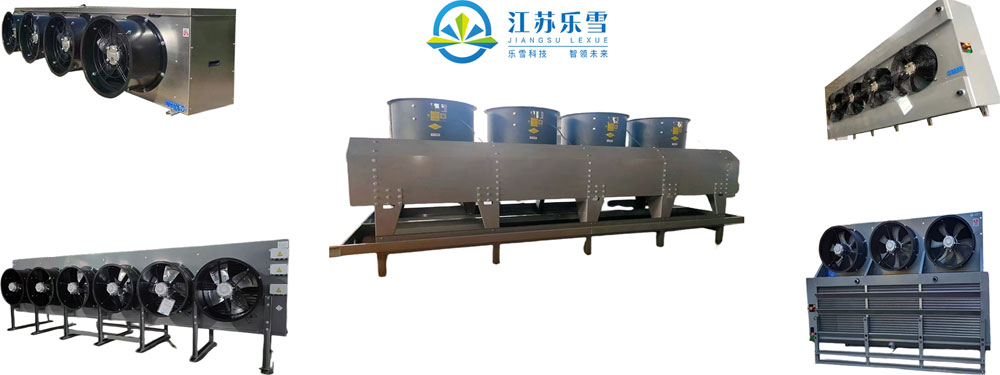

Other Series Air Coolers

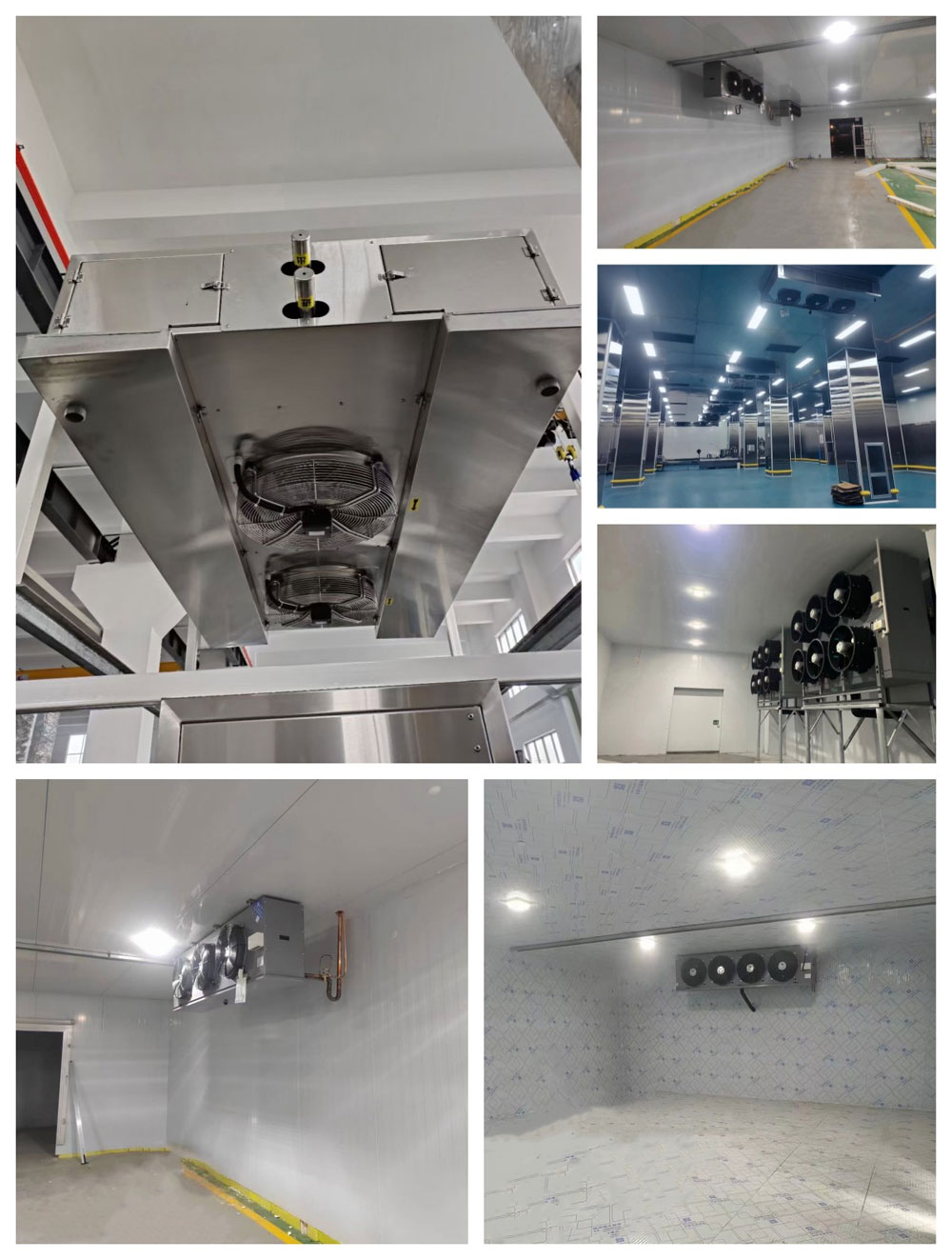

On-site installation display
